Ceiling-Mounted Ultra-fine Dry Chemical Fire Suppression Unit

1. System Overview

The ceiling-mounted ultra-fine dry chemical fire suppression Unit is an automatic fire suppression system specifically designed for small or localized high-risk fire hazards. The system utilizes a high-efficiency ultra-fine dry chemical extinguishing agent and is installed in a suspended configuration to rapidly cover the fire source and suppress fire development. It is particularly suitable for the protection of electrical equipment, control cabinets, equipment rooms, control panels, and industrial machinery.

With its compact structure and flexible installation, the system meets international market requirements for high reliability, rapid response, and equipment-level local protection, and is widely applied in modern overseas engineering projects as a proven dry chemical fire suppression solution.

2. Key Advantages

1. Highly Efficient Fire Suppression with Rapid Response

The ultra-fine dry chemical particles are uniformly sized and, upon discharge, quickly envelop the fire source, interrupting the combustion chain reaction and achieving rapid extinguishment.

2. Suspended Configuration for Uniform Coverage

Installed overhead within the protected space, the suspended layout allows optimized positioning directly above hazard areas, providing point-to-area coverage and minimizing blind spots.

3. Dual Activation: Automatic and Manual

The system can be actuated via fire alarm system interlock, manual release, or automatic thermal activation of the heat-sensitive element, ensuring reliable operation under emergency conditions.

4. Wide Applicability

Suitable for Class A fires, Class B fires, electrical fires, mechanical equipment fires, and other localized fire hazards, offering broad application flexibility.

5. Easy Installation and Low Maintenance

The suspended design minimizes space requirements. With a simplified piping arrangement, maintenance workload is low and long-term system reliability is ensured.

6. Compliance with International Standards

The product design can comply with applicable international fire protection standards, facilitating use in overseas projects and export applications.

3. Operating Principle

1. Under normal conditions, the extinguishing agent is stored within a pressurized container.

2. When a fire occurs within the protected space, the heat-sensitive element of the nozzle ruptures due to heat, or the system is actuated via interconnection with the fire alarm system, triggering discharge.

3. The ultra-fine dry chemical agent is released through the nozzle and uniformly dispersed over the fire area.

4. The dry chemical blankets the fire source, interrupts the combustion chain reaction, and suppresses temperature rise, resulting in rapid extinguishment.

5. A manual actuation device is provided for emergency operation when required, ensuring suppression reliability.

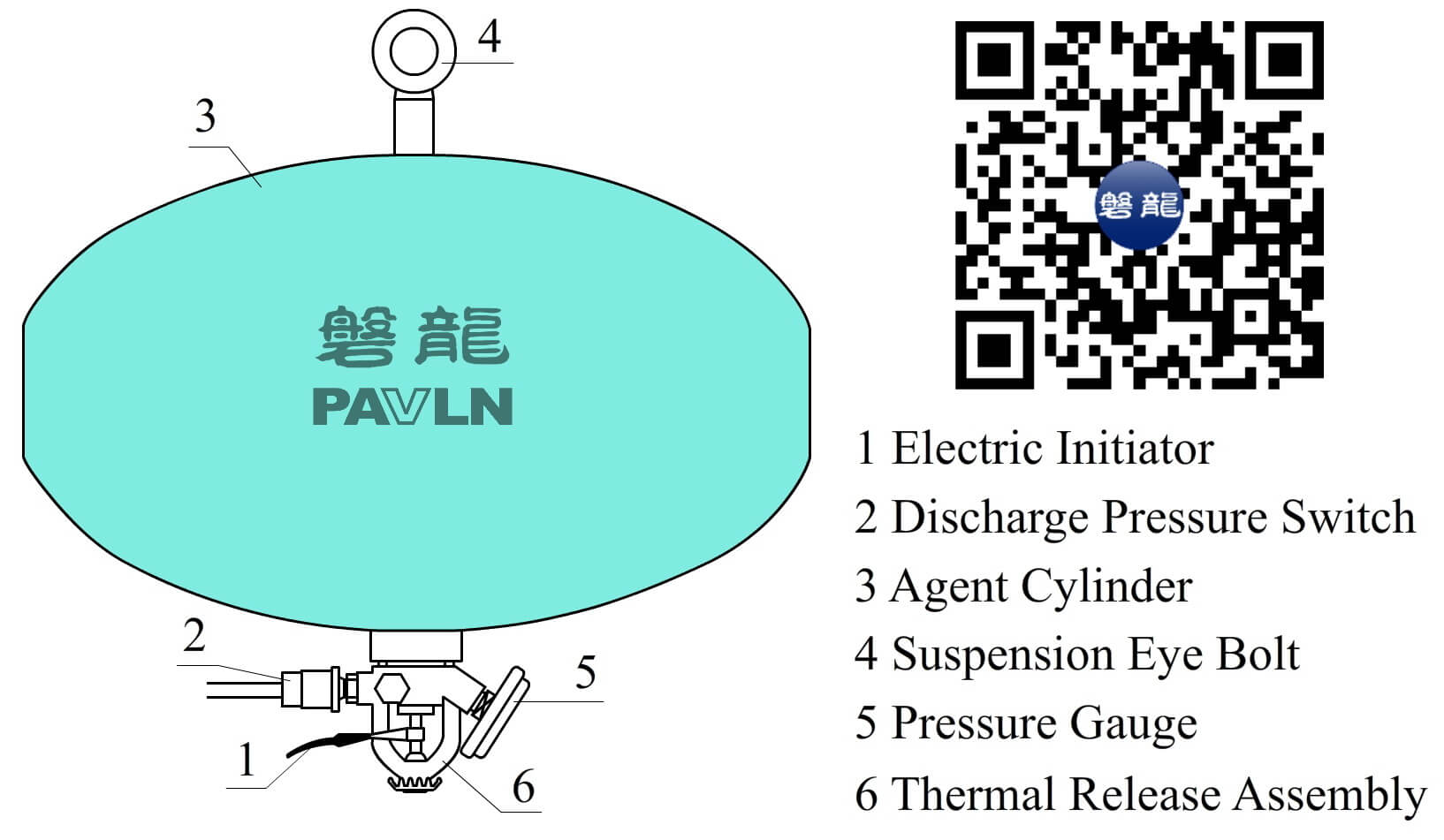

4. System Components

5. Main Technical Parameters

6. Typical Applications

• Electrical control cabinets, switchgear rooms, and equipment rooms

• Local protection of industrial automation equipment

• Warehouse machinery and small processing equipment

• Telecommunications rooms, low-voltage rooms, and UPS equipment spaces

• Marine engine rooms and mobile equipment protection areas

• Other high-risk localized fire hazard applications

Contact Us

If you are seeking a ceiling-mounted ultra-fine dry chemical fire suppression Unit that offers:

• High-efficiency fire suppression with rapid response for electrical and mechanical hazards

• Suspended installation providing uniform coverage and localized protection

• Dual automatic and manual activation for safe and reliable operation

• Simple installation, minimal space occupation, and easy maintenance

• Compliance with international standards for overseas projects and export applications

Please contact our fire protection solutions team. We provide:

• Protected space assessment and system design

• Product configuration, technical selection, and standards compliance support

• Project quotation, delivery, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to delivering safe, efficient, and internationally compliant dry chemical fire suppression solutions for global customers.
