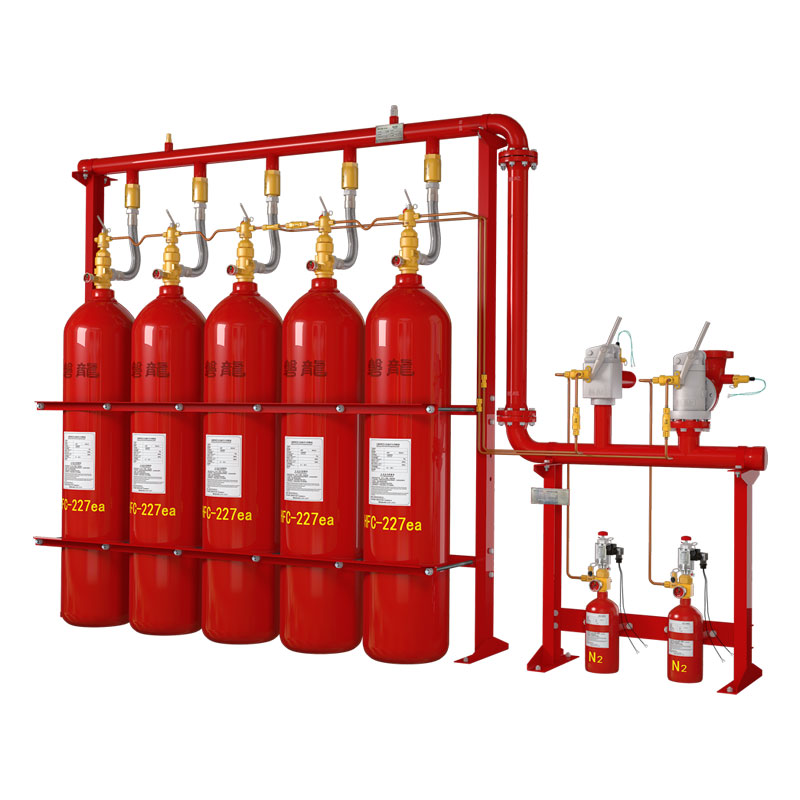

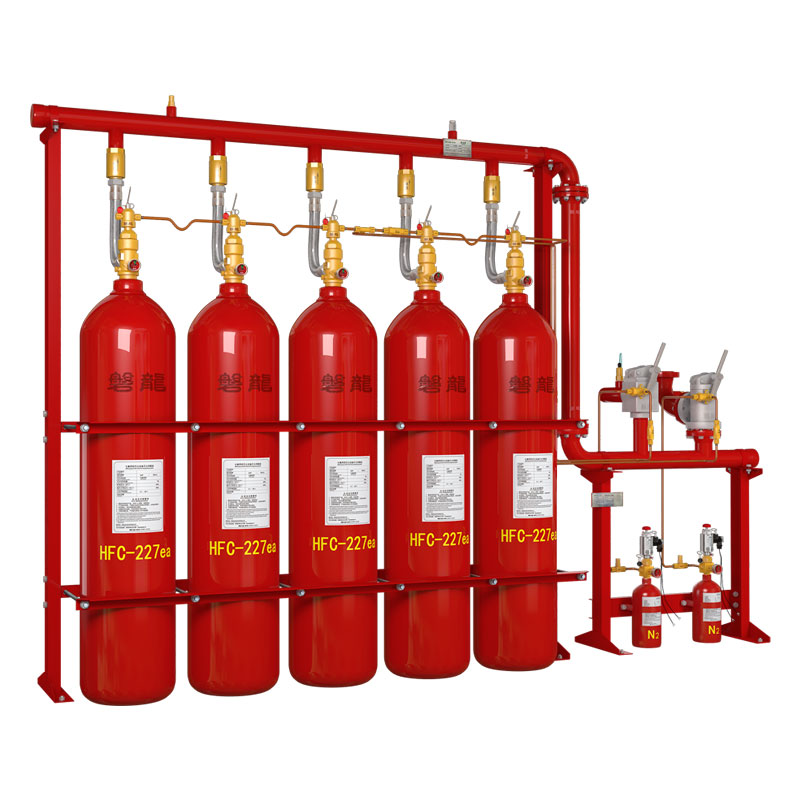

Piped HFC-227ea (Heptafluoropropane) Fire Suppression System (5.6 MPa)

1. System Overview

HFC‑227ea (heptafluoropropane) is a highly efficient and clean gaseous extinguishing agent that suppresses fire through a combined physical and chemical inhibition mechanism. Its chemical formula is CF₃CHFCF₃. It is chemically stable, has very low toxicity, leaves no residue after discharge, is non‑conductive, and will not damage sensitive electronic equipment.

HFC‑227ea suppression systems are widely used internationally and are one of the mainstream replacements for Halon 1301. These systems are particularly suited for protecting high‑value, mission‑critical, and downtime‑sensitive environments.

In stored-pressure gas fire suppression systems, the extinguishing agent (e.g., HFC-227ea) and the driving gas (nitrogen) are stored together in the same cylinder. Upon detection of a fire, the extinguishing agent is discharged into the protected enclosure via a distribution network, propelled by the internal pressure from the nitrogen gas.

Compared with pre-engineered (non-piped) systems, a piped stored-pressure HFC-227ea system is capable of protecting multiple hazard areas through a single system by utilizing a piping network and selector valves. This design enhances system flexibility, improves suppression efficiency, and reduces overall equipment configuration costs.

2. Key Advantages

Personnel Safety:

HFC‑227ea is safe for short‑term human exposure at design concentrations.

It discharges rapidly, produces no corrosive by‑products, and does not hinder personnel evacuation.

Environmentally Friendly:

Ozone Depletion Potential (ODP) = 0

Global Warming Potential (GWP) is significantly lower than many other Halon substitutes.

Complies with the Montreal Protocol and national environmental regulations.

Clean and Residue‑Free:

No powder or liquid residue after discharge; no contamination of equipment.

Ideal for environments requiring high cleanliness such as data centers, archives, and laboratories.

High Extinguishing Efficiency

• Discharge time ≤ 10 seconds, achieving extinguishing concentration within a very short period.

• Utilizes the total flooding method, capable of rapidly extinguishing Class A, Class B, and electrical fires.

Mature and Reliable System

• Well-established technical standards.

• Compact equipment configuration, strong system interlocks, and simplified maintenance and management.

3. How It Works

The extinguishing mechanism of HFC-227ea is a combined action of chemical inhibition and heat absorption.
When a fire occurs, the extinguishing control system receives the alarm signal and actuates the selector valve and the container valve, releasing the agent rapidly through the distribution piping into the protected area.
HFC-227ea extinguishes fire through the following mechanisms:

1. Removal of active free radicals in the flame (chemical inhibition)

2. Reduction of combustion temperature through heat absorption

3. Dilution of oxygen concentration

At the design concentration, the combustion chain reactions of most fuels are interrupted, enabling rapid extinguishment, while still maintaining a safe, breathable environment for occupants within the protected enclosure.

4. System Components

5. Main Technical Parameters

6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.

Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High extinguishing efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.
