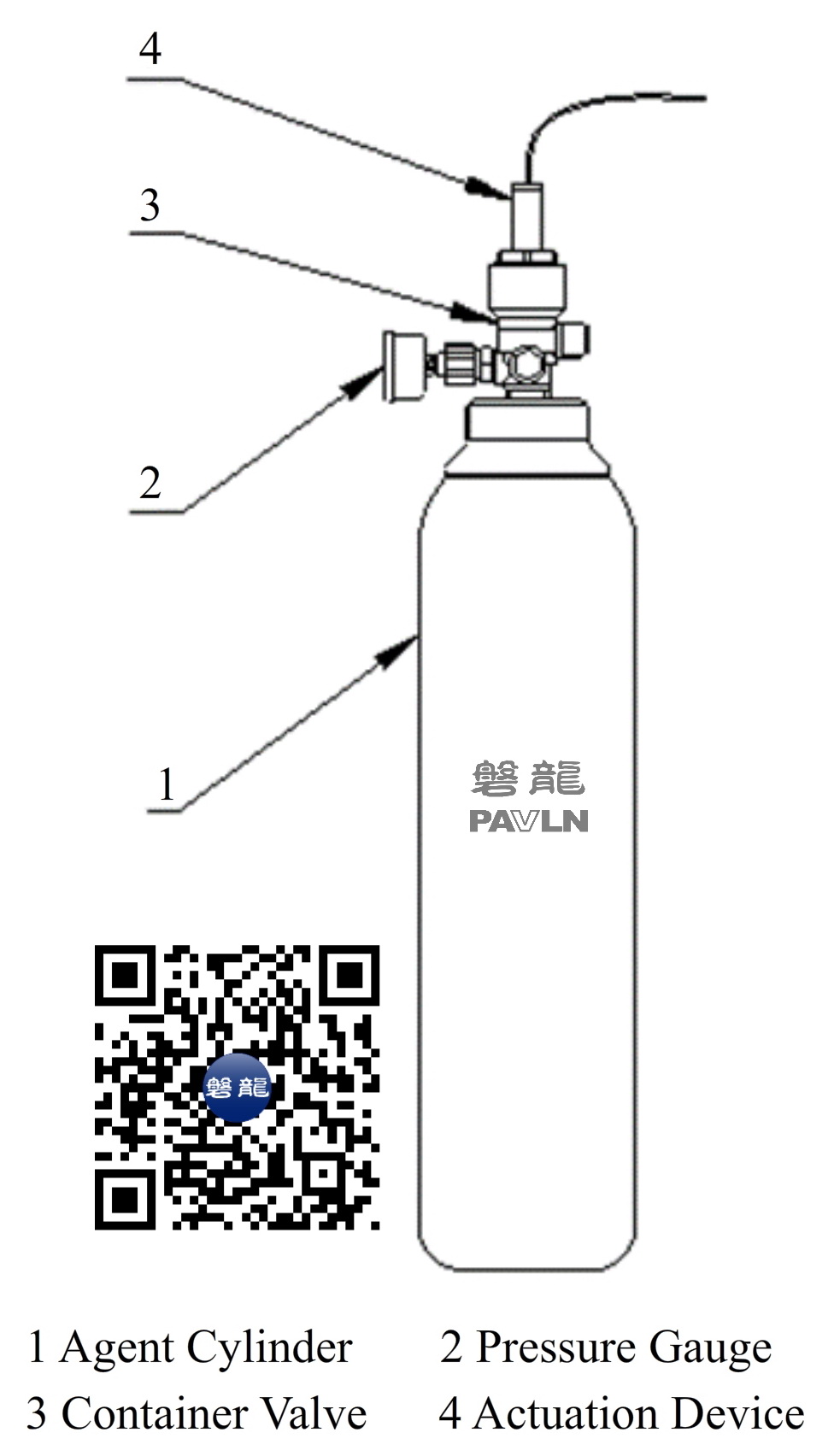

The Cylinder-Based FK-5-1-12 Fire Suppression System is an intelligent automatic fire suppression system composed of extinguishing agent cylinder assemblies, pressure gauges, and actuation devices. The system can be installed at flexible locations according to site conditions and operates using a total flooding fire suppression method.
When a fire occurs, the system receives a fire suppression activation signal and discharges the extinguishing agent directly into the protected area. It features rapid discharge, high suppression efficiency, and reliable fire control performance.
FK-5-1-12 is discharged at the incipient stage of a fire to suppress the combustion chain reaction, effectively preventing fire growth and escalation.
FK-5-1-12 leaves no residue, is electrically nonconductive, and does not damage precision equipment. It is safe for occupied spaces and requires no post-discharge cleanup.
The system is installed inside the protected equipment or enclosure, close to high-risk ignition points, enabling faster and more precise fire suppression.
The pre-engineered configuration eliminates complex field construction. Routine maintenance is minimal, resulting in reduced overall ownership cost.
The cylinder-based FK-5-1-12 fire suppression system remains in a standby condition and is interconnected with the fire detection and control system.
Upon confirmation of a fire signal, the control unit issues an actuation command.
The cylinder valve opens, and FK-5-1-12 is discharged directly into the protected area.
The agent rapidly vaporizes, absorbing heat and suppressing the combustion reaction.
The fire is effectively controlled or extinguished, preventing further fire development.
|
Model |
YF6/2.5N-PAVLN-I |
|
Storage Pressure (20 °C) |
2.5 MPa |
|
Maximum Operating Pressure (50 °C) |
3.2 MPa |
|
Extinguishing Agent |
FK-5-1-12 |
|
Agent Charge |
4.5 kg |
|
Power Supply |
≥DC24V、0.8A |
|
Operating Temperature Range |
-10～50℃ |
Data centers, server cabinets, and telecommunication rooms
Power distribution cabinets, electrical rooms, and control systems
Energy storage systems, battery enclosures, wind power and new energy equipment
Industrial automation control cabinets and precision instrumentation
Contact Us
If you are seeking a Cylinder-Based FK-5-1-12 Fire Suppression System with the following features:
Centralized agent supply using cylinder assemblies for medium to large protected spaces
Early-stage fire suppression to prevent fire escalation
Clean, environmentally acceptable agent with no secondary equipment damage
Uniform discharge coverage and stable, reliable system operation
Compliance with international clean agent fire suppression system application requirements
Please contact our fire protection solutions team. We provide:
Project risk assessment and system design recommendations
Product selection, technical consultation, and code compliance support
Engineering quotation, supply, and implementation services
Installation guidance, commissioning support, and operation & maintenance training
We are committed to delivering safe, efficient, and environmentally responsible FK-5-1-12 fire suppression solutions for customers worldwide.
