Embedded FK-5-1-12 Fire Suppression Device

1. System Overview

The Embedded FK-5-1-12 Fire Suppression Device is a highly integrated fire protection product specifically designed for equipment interiors and localized enclosed spaces. The device uses FK-5-1-12 clean agent as the extinguishing medium and is installed in an embedded configuration directly adjacent to fire hazard sources, enabling early-stage fire suppression and rapid extinguishment.

Based on the protection philosophy of “suppression first, extinguishment second,” the device discharges FK-5-1-12 at the incipient stage of a fire to effectively reduce combustion intensity and prevent fire growth and escalation. It is particularly suitable for applications with stringent requirements for continuous equipment operation, safety, and space efficiency, and is recognized in international markets as an equipment-level, localized fire protection solution.

2. Key Advantages

1. Embedded installation, close-proximity fire protection

The device is directly embedded within the protected equipment or structure, positioned near high-risk ignition points to achieve faster and more precise fire suppression and extinguishment.

2. Combined suppression and extinguishment for early response

FK-5-1-12 is discharged at the early stage of fire development, suppressing the combustion reaction and effectively preventing small fires from developing into major incidents.

3. Compact structure with minimal space requirements

The unit features a compact form factor and can be flexibly installed inside equipment without affecting original structure or normal operation.

4. Clean and environmentally acceptable, no secondary damage

FK-5-1-12 leaves no residue, is electrically nonconductive, and noncorrosive. No post-discharge cleanup is required, making it ideal for protecting sensitive and precision equipment.

5. Easy installation and maintenance with low total cost

Prefabricated and modular design minimizes on-site work, reduces maintenance effort, and offers clear life-cycle cost advantages.

3. Operating Principle

1. The device remains in a normal monitoring and standby condition, embedded within the protected equipment.

2. When a fire occurs inside the equipment and elevated temperature is detected, the actuation component is activated.

3. The internal actuation mechanism operates rapidly, releasing the FK-5-1-12 extinguishing agent into the protected space.

4. The agent vaporizes rapidly, absorbing heat and interrupting the combustion chain reaction.

5. The fire is effectively suppressed or extinguished, preventing further fire development.

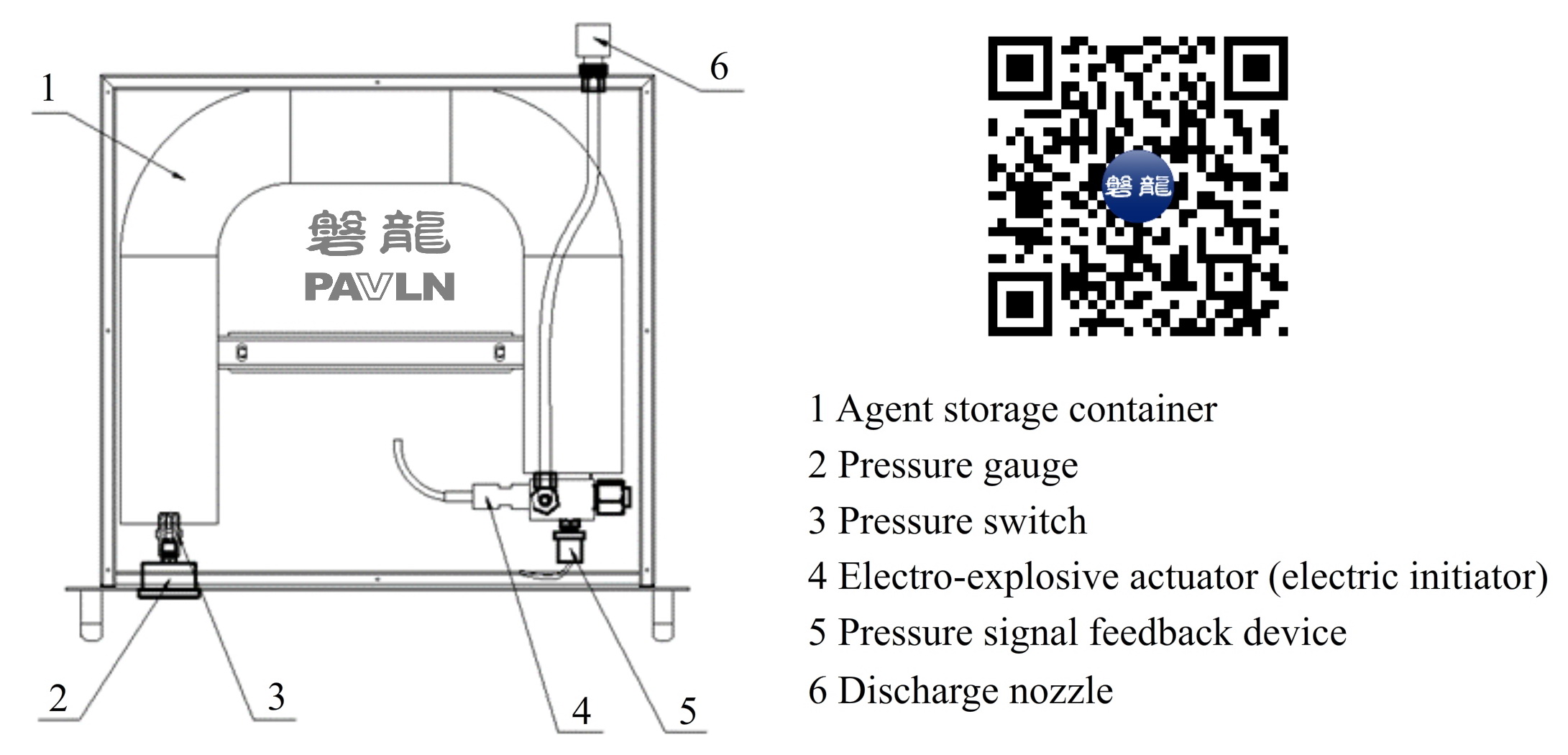

4. System Components

5. Main Technical Parameters

6. Typical Applications

• Energy storage systems and battery module protection

• Power distribution equipment, switchgear, and control modules

• Telecommunication equipment, network terminals, and small cabinets

• Industrial automation equipment and critical components

• Other equipment interiors with limited space and concentrated fire risks

Contact Us

If you are looking for an Embedded FK-5-1-12 Fire Suppression Device with the following advantages:

• Embedded structural design for precise, close-proximity fire protection

• Early-stage fire suppression to prevent fire escalation

• Compact design suitable for equipment-level and localized protection

• Clean, environmentally acceptable agent with no secondary damage

• Compliance with international clean agent fire suppression and equipment protection applications

Please contact our fire protection solutions team. We provide:

• Risk assessment and system configuration recommendations

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, environmentally responsible, and high-efficiency equipment-level fire suppression and extinguishment solutions for global customers.
