Foam Fire Hose Cabinet

1. Product Overview

The Foam Fire Hose Cabinet is an integrated fire-fighting terminal device based on foam fire suppression technology. It is designed for manual operation during the early stage of a fire, enabling the rapid discharge of high-efficiency foam extinguishing agent to achieve fire surface coverage, oxygen separation, cooling, and re-ignition suppression.

The system uses an environmentally friendly foam concentrate mixed with water as the extinguishing medium. Through a foam proportioning device and a foam discharge nozzle (foam branchpipe), a uniform and stable foam blanket is generated, providing highly effective fire suppression while ensuring reliable protection for both personnel and equipment.

As a mature and proven fire protection product, the Foam Fire Hose Cabinet is particularly suitable for facilities with flammable liquid fire hazards, such as petrochemical installations, warehouses, parking garages, aircraft hangars, marine terminals, and fuel storage tank areas.

2. Key Advantages

Efficient Coverage and Fire Isolation

• The foam blanket rapidly covers the burning surface, separates oxygen, and effectively suppresses flame spread.

• Suitable for extinguishing Class A and Class B fires, wit strong resistance to re-ignition.

Environmentally Safe and Reliable Operation

• Uses environmentally acceptable foam agents with minimal environmental impact.

• The stable foam layer significantly reduces thermal radiation and smoke dispersion during fire suppression.

Wide Applicability and Rapid Response

• Capable of addressing various flammable liquid fire scenarios, with fast and effective fire control.

• Simple operation and rapid system response make it ideal for on-site emergency use by trained personnel.

Economical and Easy Maintenance

• Foam concentrate is chemically stable with a long service life, ensuring controlled operating costs.

• Robust system design with extended maintenance intervals, well suited for industrial and storage environments.

3. Operating Principle

The Foam Fire Hose Cabinet adopts a configuration consisting of a foam proportioner combined with a foam discharge nozzle.

When a fire occurs, an operator deploys the foam nozzle and opens the control valve. The system automatically proportions the foam concentrate and water at a preset ratio, producing a foam solution. The foam is then discharged through the nozzle, forming a foam blanket that covers the fire source, achieving rapid fire extinguishment and effective isolation.

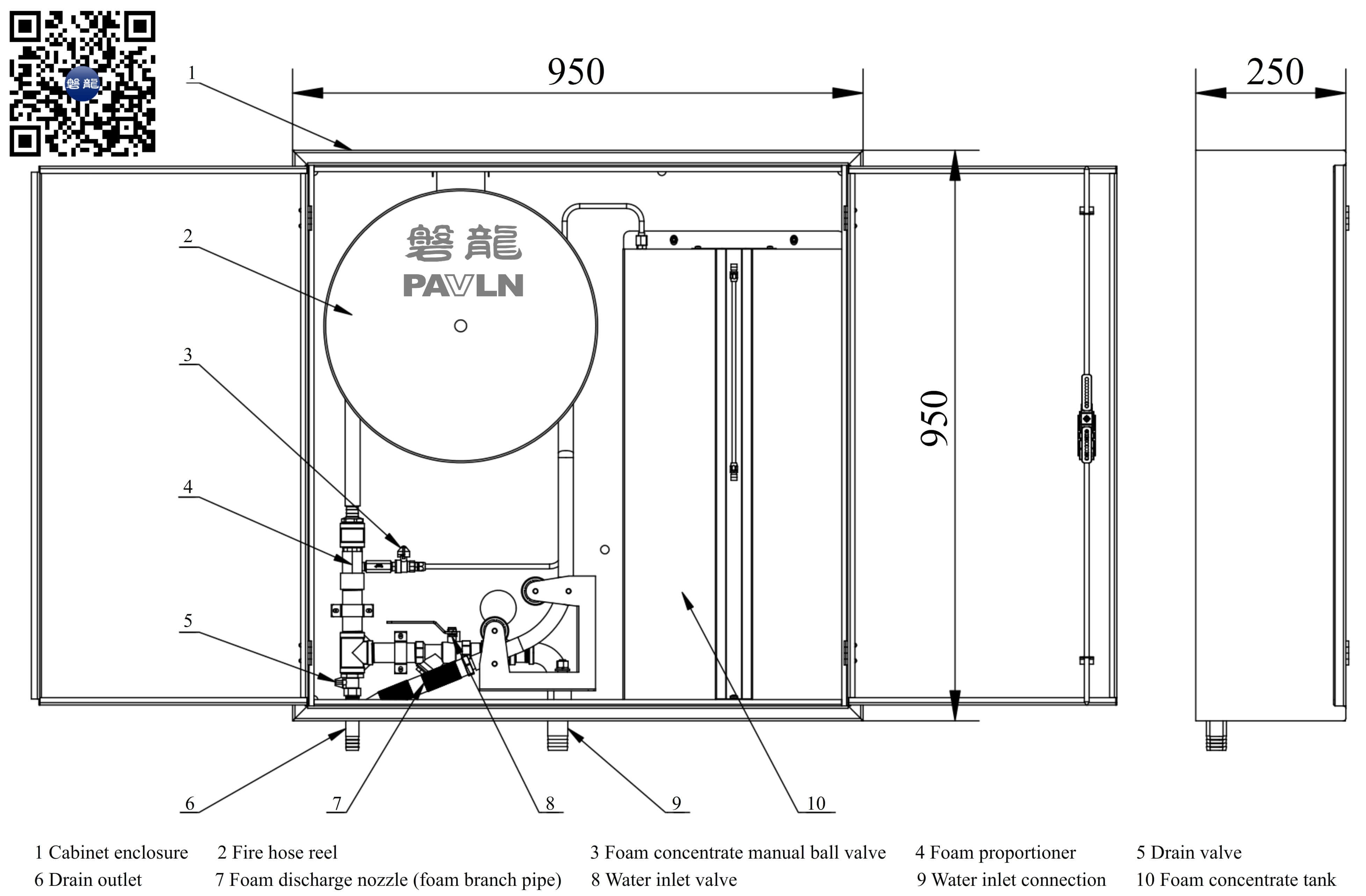

4. System Components

5. Main Technical Parameters

6. Typical Applications

The Foam Fire Hose Cabinet is suitable for locations with flammable liquid fire risks, including but not limited to:

• Underground engineering tunnels

• Civil defense facilities

• Metro and subway systems

• Fuel filling stations

• Petrochemical plants

• Fuel storage depots

• Vehicle parking garages

• Aircraft maintenance hangars

• Logistics and warehousing centers

It provides effective fire control, fire spread prevention, and loss mitigation in these environments.

Contact Us

If you are seeking a manual fire-fighting solution for incipient fires that offers:

• Efficient fire surface coverage and isolation

• Environmentally safe and reliable operation

• Rapid response with wide applicability

• Cost-effective performance and easy maintenance

please contact our sales and technical support team for:

• Customized fire protection solutions

• Project design and installation support

• Competitive pricing and reliable supply services

We look forward to supporting your fire safety requirements with professional and proven solutions.
