IG-100 Gas Fire Suppression System (15 MPa)

1. What is IG-100?

IG-100 is a clean, inert gas suppression agent that suppresses fire through a physical mechanism. Its component is nitrogen.:

• Nitrogen (N₂): 100%

IG-100 is an exceptionally safe and reliable fire protection solution for protecting high-value and mission-critical assets.

2. Key Advantages

Inherently Safe for Occupants:

• The IG-100 system is designed in accordance with applicable standards, and its suppression mechanism relies on reducing the oxygen concentration within the protected enclosure. This level is breathable and supports life, similar to the air at a high altitude, but effectively suppresses combustion.

Zero Environmental Impact:

• Ozone Depletion Potential (ODP) = 0

• Global Warming Potential (GWP) = 0

• Atmospheric Lifetime = 0

• Composed of natural gases, it has no negative impact on the atmosphere.

Clean and Non-Damaging:

• Suppression is purely physical. The agent does not undergo any chemical decomposition during discharge.

• No residue is left behind, ensuring no damage to sensitive electronics, server hardware, historical documents, or valuable artwork.

Highly Effective and Reliable:

• Achieves the design concentration typically within 60 seconds, ensuring rapid fire knockdown.

• Simple system architecture with robust components, ensuring ease of maintenance and high reliability.

3. How It Works

IG-100 operates on the principle of oxygen dilution (physical suppression).

When a fire occurs and the system is activated, IG-100 agent is rapidly discharged into the protected area. It extinguishes the fire by diluting the oxygen concentration in the air, thereby removing one of the essential elements required for combustion. At the design concentration, the atmosphere will not support a flame, but remains safe for occupied spaces for a short period, allowing for safe evacuation.

Crucially: IG-100 is chemically inert and does not interfere with the fire's chemical chain reaction.

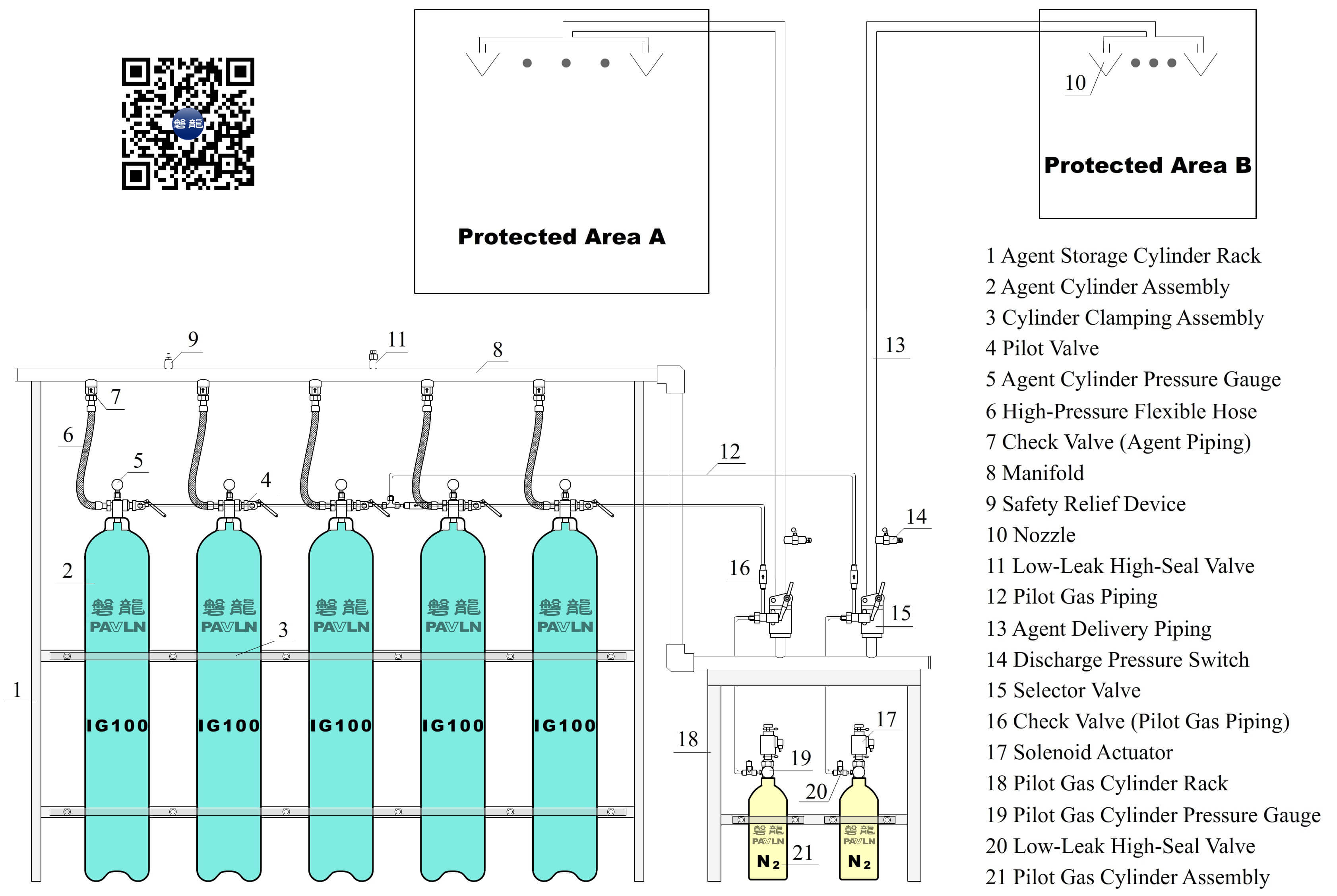

4. System Components

5. Main Technical Parameters

6.Typical Applications

The IG-100 system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for IG-100 protection.

Call to Action:

Are you looking for a fire suppression solution that provides superior protection for your critical assets while prioritizing human safety and environmental responsibility?

The IG-100 Inert Gas System is your answer. Contact our engineering and sales team today for a project-specific design proposal and quotation.
