Leakage Monitoring Device for Piped HFC-227ea Fire Suppression System (Externally Pressurized Type)

1. System Overview

The Leakage monitoring device for Piped HFC-227ea Fire Suppression System (Externally Pressurized Type) is a basic safety monitoring device designed for visual monitoring of the agent liquid level condition in externally pressurized HFC-227ea storage containers.
By continuously indicating changes in the liquid level within the agent cylinder, the device helps ensure that the gaseous fire suppression system maintains sufficient agent quantity and remains capable of proper discharge when required.

With a simple structure and stable performance, this device serves as an essential auxiliary component of gaseous fire suppression systems. It is widely used in engineering applications as a cost-effective Leakage and liquid level monitoring solution that meets basic operational monitoring and code inspection requirements.

2. Key Advantages

1. Clear liquid level indication for easy inspection

The device provides a clear and intuitive liquid level indication, enabling maintenance personnel to quickly verify whether the agent quantity in the cylinder is within the normal range during routine inspections.

2. Simple and reliable structure with high stability

Featuring a proven mechanical structure without complex electronic components, the device offers long-term stable operation with a low failure rate.

3. Economical and practical solution

While meeting fundamental liquid level monitoring requirements, the device offers a low overall cost, making it suitable for projects with simplified monitoring needs.

3. Operating Principle

1. The liquid level monitoring device is installed at the designated liquid level detection point on the externally pressurized HFC-227ea agent cylinder.

2. An internal sensing element continuously detects changes in the agent liquid level inside the container.

3. The liquid level condition is continuously displayed via indicator lights.

4. When the liquid level exceeds the normal range, abnormal conditions can be identified through routine manual inspection and addressed in a timely manner.

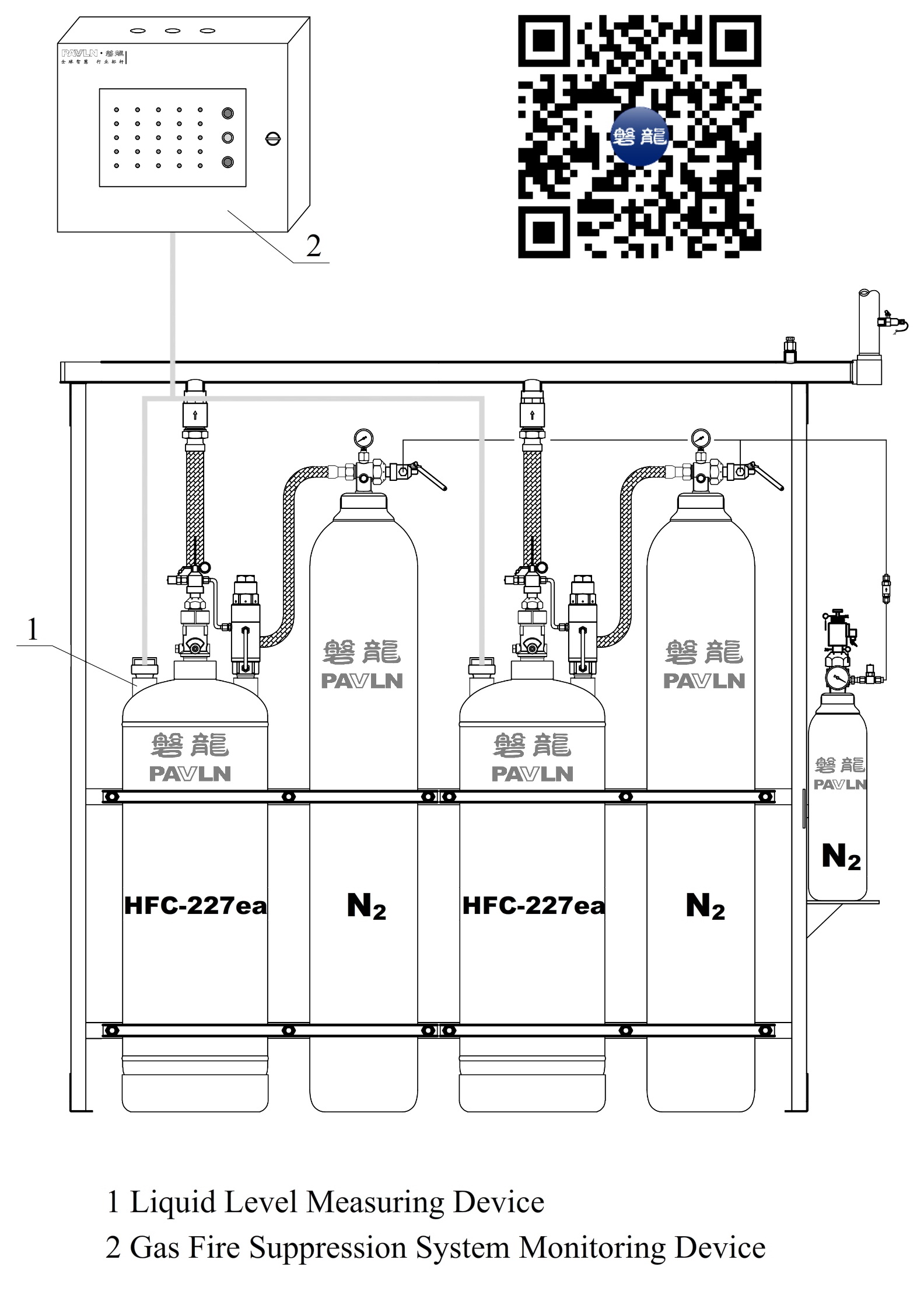

4. System Components

5. Main Technical Parameters

• Monitoring device dimensions (L × W × H): 360 × 110 × 450 mm

• Number of monitoring points: 25

6. Typical Applications

• Externally pressurized HFC-227ea gaseous fire suppression systems

Contact Us

If you are looking for a Leakage monitoring device with the following features for Piped HFC-227ea Fire Suppression System (Externally Pressurized Type):

• Visual monitoring of agent liquid level status in externally pressurized HFC-227ea cylinders

• Simple and reliable structure with long-term stable operation

• Easy installation and compatibility with various gaseous fire suppression systems

• Cost-effective solution meeting basic monitoring requirements

• Compliance with operational and inspection requirements for gaseous fire suppression systems

Please contact our fire protection solutions team. We provide:

• System compatibility evaluation and product selection recommendations

• Engineering support and technical consultation

• Project quotation, supply, and implementation services

• Installation guidance and operation & maintenance instructions

We are committed to delivering reliable, practical, and cost-effective monitoring solutions for gaseous fire suppression systems that meet international engineering and safety requirements.
