The Foam Spray Fire Suppression System is a new type of fixed fire suppression system that combines foam fire suppression technology with water spray technology. The system utilizes a high-efficiency water-based foam concentrate which, under gas-driven pressure, is discharged through dedicated foam spray nozzles, uniformly and rapidly delivering the foam agent into the protected area to achieve rapid fire control and complete extinguishment.
The system integrates multiple proven technologies, including automatic control, gas-driven discharge, and zoned protection. It features high extinguishing efficiency, excellent system reliability, and simple installation and maintenance, and is widely applicable to small- and medium-scale flammable liquid fires and equipment fire protection scenarios.
High Extinguishing Efficiency
Provides a dual extinguishing mechanism combining foam surface coverage and water mist cooling, enabling rapid fire knockdown and effective prevention of re-ignition.
Low Agent Consumption, Environmentally Safe
Uses a high-performance water-based foam agent that is environmentally friendly, produces minimal residue, and is easy to clean after discharge.
No Fire Water Supply Required
The system employs stored compressed gas as the discharge power source and does not require a fire water tank or large water supply equipment, making it suitable for water-limited locations.
Multiple Actuation Modes, High Reliability
Supports automatic actuation, manual actuation, and mechanical emergency actuation, ensuring reliable operation under all conditions.
Modular Design, Flexible Application
A single system can protect multiple hazard areas through zone control valves, facilitating system integration, expansion, and flexible engineering design.

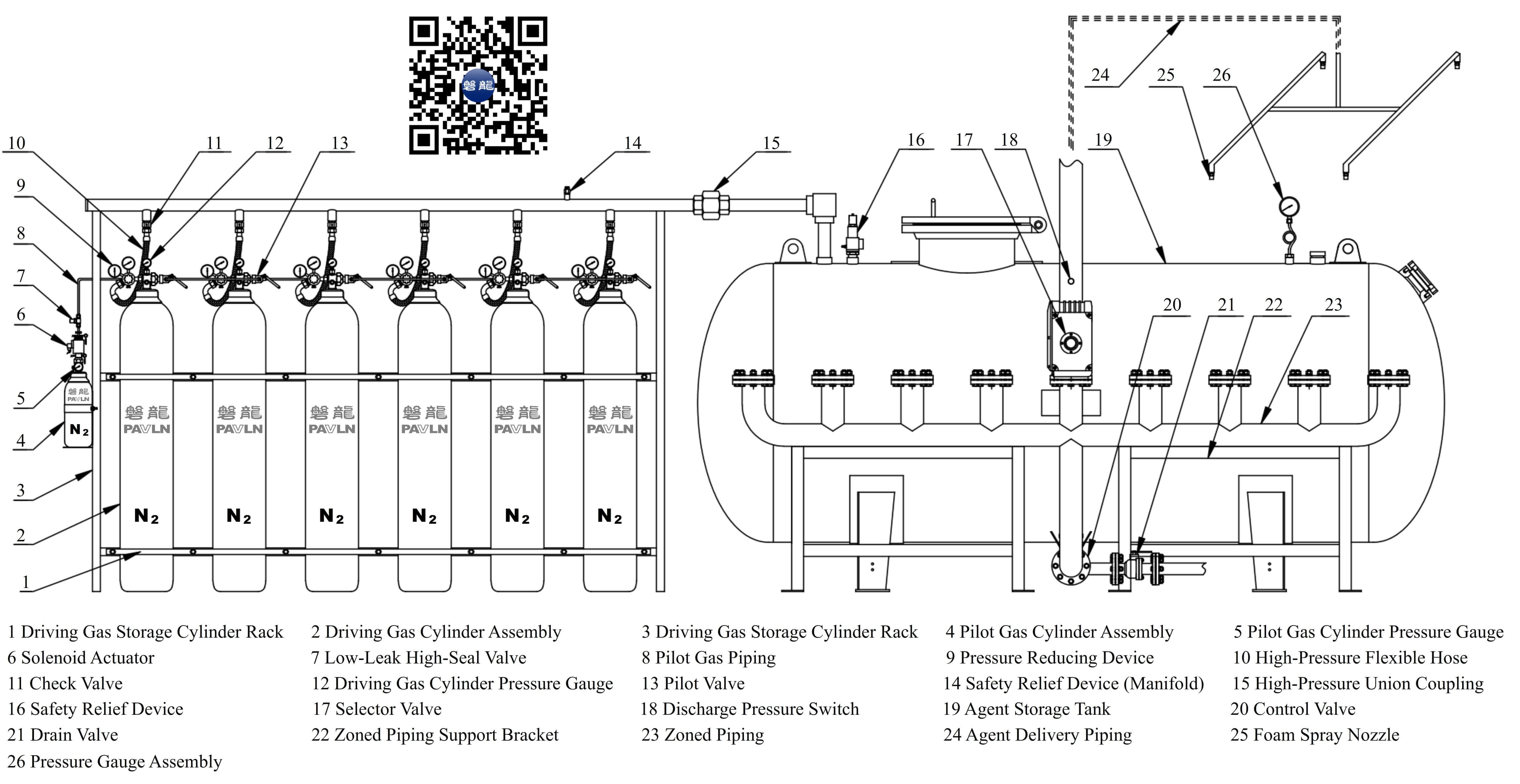

When a fire occurs within a protected area, the fire alarm control system issues an activation signal, and the system operates as follows:
The solenoid-operated actuator is energized, releasing the driving gas (nitrogen).
The driving gas opens the propellant gas cylinder assembly, discharging compressed gas.
The gas passes through a pressure-reducing device and enters the foam solution storage tank.
The foam agent is forced into the agent distribution piping network.
The foam agent is discharged and atomized through foam spray nozzles.
A foam blanket is formed within the protected area, achieving rapid fire extinguishment.
Through zoning control valves, the system can provide independent discharge for single or multiple zones, improving operational efficiency and system utilization.
Agent Operating Pressure | 0.8 MPa |
Continuous Discharge Duration | > 15min |
Extinguishing Agent Application Rate | ≥ 8L/(min·m2) |
Foam Spray Nozzle Operating Pressure | ≥ 0.35MPa |
Driver Gas Cylinder Capacity | 70 L |
Driving Gas Charging Pressure | 13.5 MPa （20℃） |
Pilot Gas Charging Pressure | 6 MPa （20℃） |
Pilot Gas / Driving Gas | Nitrogen |
Operating Activation Power Supply | ≥ 24V，1.5A |
Activation Methods | Automatic, Manual, Mechanical Emergency Operation |
Operating Ambient Temperature | 4℃~50℃ |
The Foam Spray Fire Suppression System is particularly suitable for the following applications:
Oil-immersed power transformers
Fuel-fired boiler rooms
Diesel or fuel-oil generator rooms
Small oil depots and fuel storage tank areas
Vehicle garages and maintenance workshops
Ship engine rooms and machinery spaces
Hydraulic equipment rooms and pump rooms
It is especially effective for the protection of flowing hot-oil fires and flammable liquid fire hazards.
Are you looking for a fire protection solution capable of effectively addressing the following challenges?
Specifically designed for flammable liquid and equipment fires, enabling rapid fire control
Effective suppression of re-ignition, preventing fire spread and recurrence
Low agent consumption and minimal residue, balancing extinguishing efficiency and cleanliness
No requirement for fire water tanks or complex water supply systems, allowing flexible deployment
Multiple actuation modes to ensure reliable operation at critical moments
The Foam Spray Fire Suppression System provides a fast, precise, economical, and reliable professional fire protection solution.
