Pump-Type FK-5-1-12 Fire Suppression System

1. System Overview

The pump-type FK-5-1-12 fire suppression system is an advanced clean agent fire suppression solution that utilizes liquid FK-5-1-12 extinguishing agent combined with a dedicated pump unit for agent delivery. When activated, a high-reliability pump set rapidly conveys the agent to the discharge nozzles, achieving efficient and uniform fire suppression within the protected enclosure.

Unlike traditional high-pressure cylinder-based clean agent systems, the pump-type configuration maintains the excellent fire suppression performance of FK-5-1-12 while offering key advantages such as atmospheric-pressure storage, centralized agent supply, and strong system scalability. It is particularly suitable for medium to large protected spaces and projects with multiple hazard zones served by a centralized system, and represents a next-generation clean agent fire suppression solution increasingly adopted in international markets.

2. Key Advantages

1. Pump-based delivery for enhanced system safety

The extinguishing agent is stored at atmospheric pressure and pressurized only during discharge by the pump unit, eliminating the safety risks associated with high-pressure storage cylinders and improving overall system safety and reliability.

2. High agent utilization with uniform discharge

Stable pump-driven delivery enables continuous and controllable discharge, ensuring even distribution of FK-5-1-12 throughout the protected area and improving fire suppression effectiveness.

3. Centralized configuration for multi-zone protection

A single pump system can serve multiple protected zones, reducing equipment redundancy and facilitating centralized management and maintenance.

4. Clean and environmentally acceptable agent, equipment-friendly

FK-5-1-12 leaves no residue, is electrically nonconductive, and noncorrosive, causing no secondary damage to sensitive electronic equipment or critical assets.

5. Flexible actuation and strong system integration

The system can be interfaced with the fire alarm system and facility monitoring systems, supporting automatic actuation, manual actuation, and remote control.

6. Easy maintenance with low life-cycle cost

No periodic inspection of high-pressure cylinders is required, reducing maintenance workload and lowering long-term operating costs.

3. Operating Principle

1. The system remains in standby mode, with FK-5-1-12 agent stored in an atmospheric-pressure storage tank.

2. Upon fire detection in the protected area, the fire detection system sends an actuation signal.

3. The control system activates the pump unit.

4. The pump conveys the FK-5-1-12 agent through the piping network to the designated discharge nozzles.

5. The agent is rapidly atomized and discharged, absorbing heat and interrupting the combustion process to achieve fast fire suppression.

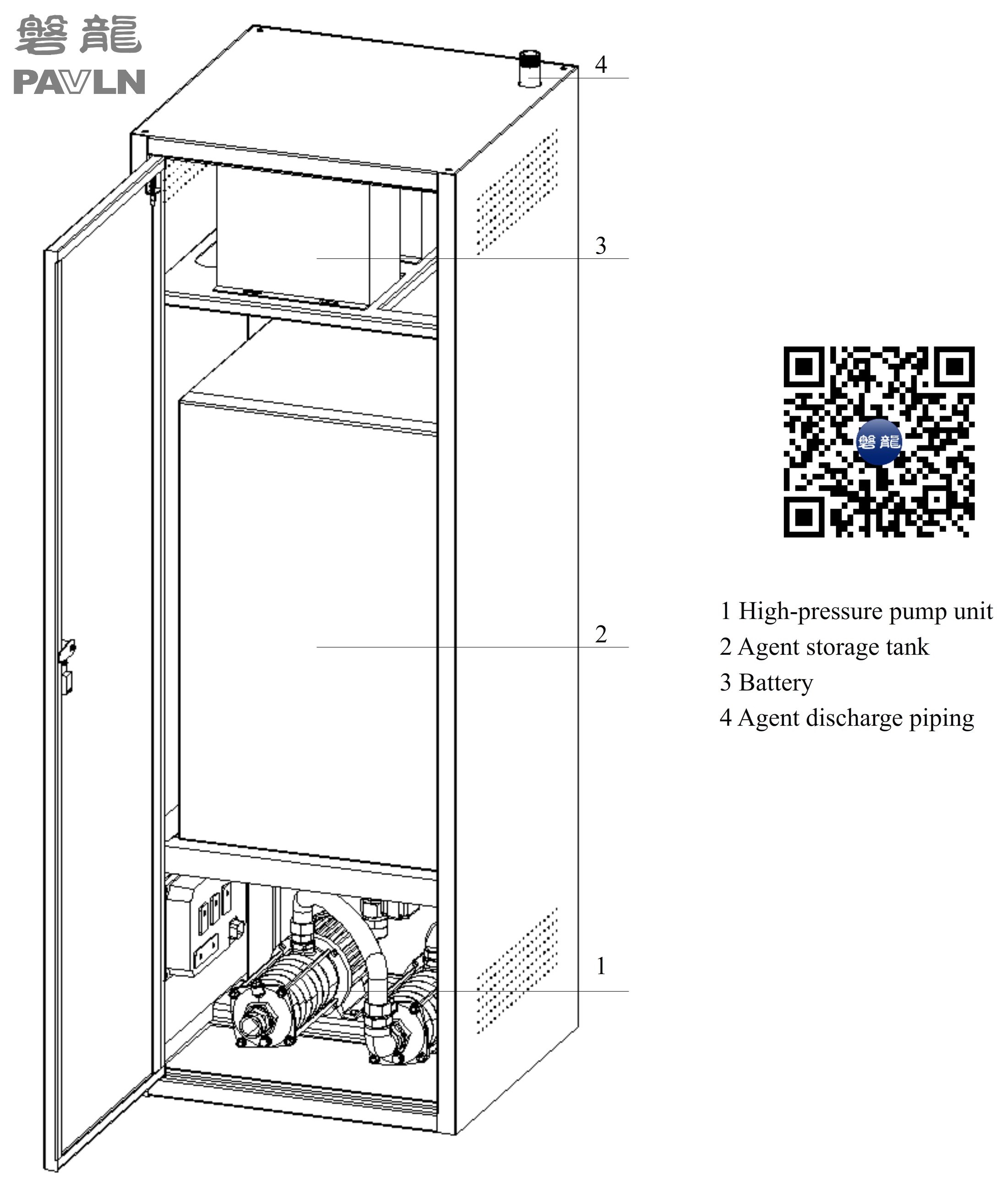

4. System Components

5. Main Technical Parameters

Additional models and parameters can be customized.

6. Typical Applications

• Containerized lithium battery energy storage systems (BESS)

• Lithium battery production lines

• Data centers and server rooms

• Telecommunication rooms and network core facilities

• Electrical control rooms and switchgear rooms

• Rail transit, aviation, and command & control centers

• Critical facilities with extremely high requirements for personnel safety and equipment protection

Contact Us

If you are seeking a pump-type FK-5-1-12 fire suppression system with the following advantages:

• Atmospheric-pressure storage with safe and reliable operation

• Pump-driven delivery for uniform and efficient agent discharge

• Centralized configuration suitable for multiple protected zones

• Clean, environmentally acceptable agent with no secondary damage

• Compliance with international clean agent fire suppression system design and application requirements

Please contact our fire protection solutions team. We provide:

• Risk assessment and system design for protected hazards

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, environmentally responsible, and high-efficiency clean agent fire suppression solutions for global customers.
