Special-type Steel Fire Shutter with Water Mist (Side-Running Type)

1. System Overview

The Special-type Steel Fire Shutter with Water Mist (Side-Running Type) is a high-performance fire compartmentation system that integrates a high-strength steel fire shutter assembly with an automatic water-mist cooling system, operating in a horizontal side-running (lateral sliding) configuration.

In the event of a fire, the shutter travels laterally along guide rails to close the opening while a continuous water-mist cooling layer is formed on the surface of the curtain, significantly enhancing fire resistance, thermal insulation, and structural stability.

This system is particularly suitable for extra-large openings, locations with limited headroom, or areas where vertical rolling fire shutters are impractical, and is widely adopted in large public buildings and special engineering projects as a special-grade fire separation solution.

2. Key Advantages

1. Steel construction combined with water-mist cooling for special-type fire resistance

The shutter curtain is fabricated from high-strength steel panels. During a fire, the water-mist system continuously cools the curtain surface, effectively resisting high-temperature exposure and significantly improving overall fire resistance and thermal insulation performance, meeting special-type fire rating requirements.

2. Side-running configuration for extra-large and complex openings

The shutter closes by horizontal lateral movement, making it ideal for large spans, restricted headroom conditions, or architecturally complex openings.

3. Low water consumption with minimal water damage

The water-mist cooling method requires substantially less water than conventional automatic sprinkler systems, reducing water consumption and minimizing secondary water damage.

4. Single-curtain design with compact space requirement

A single-curtain assembly is adopted. Compared with double-curtain inorganic special-type fire shutters, this design occupies less space and improves architectural adaptability.

5. Effective control of unexposed-side temperature rise

The water mist forms a uniform cooling film on the curtain surface, significantly reducing radiant heat transfer and limiting temperature rise on the unexposed side, thereby improving safety in adjacent compartments.

6. Stable and reliable smoke-control performance

The steel curtain, combined with sealed guide rails and lateral closing design, effectively restricts smoke migration and satisfies smoke compartmentation requirements.

7. System interlocking for safe and controlled operation

The system can be interlocked with the fire alarm system and water supply system. Upon fire detection, the shutter automatically closes laterally while the water-mist system is activated simultaneously, ensuring stable and reliable operation.

3. Operating Principle

1. Under normal conditions, the steel fire shutter is parked at one side (or both sides) of the opening, and the water-mist system remains on standby.

2. When a fire occurs, the fire alarm system sends an activation signal to the shutter control panel.

3. The drive system is activated, and the shutter travels horizontally along the guide rails to progressively close the opening.

4. Simultaneously, the water-mist system is activated, forming a continuous water-mist layer on the curtain surface to cool and protect the shutter.

5. After full closure, the shutter and water-mist system together form a high-performance fire, smoke, and thermal barrier.

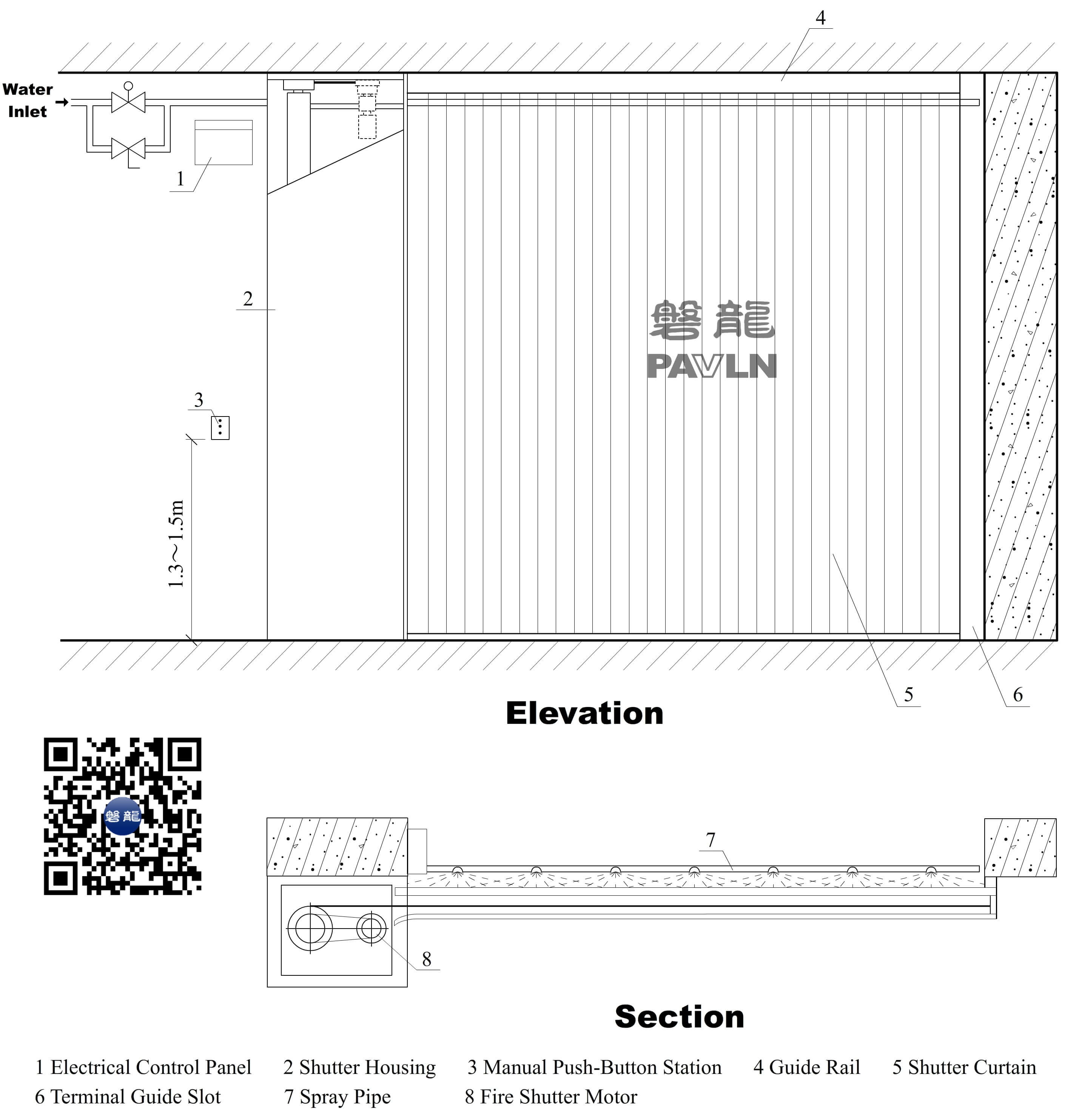

4. Product Configuration

5. Main Technical Parameters

• Curtain material: Composite steel construction

• Fire performance: Special-type fire resistance (integrity and insulation)

• Operating mode: Horizontal side-running deployment

• Water-mist mode: Continuous or interlocked discharge

• Activation: Automatic activation / Manual activation

• Maximum opening size: Customized according to project requirements

• Water application density on curtain: 0.232 m³/(h·m²)

6. Typical Applications

• Atriums and extra-large openings in large commercial complexes

• Airport terminals and transportation hubs with large spans

• Exhibition centers, exhibition halls, and sports venues

• Industrial plants, logistics centers, and large warehouses

• Fire compartments with limited headroom or where vertical fire shutters are unsuitable
