Water Mist Turbofan Fire Monitor System

1. System Overview

The Water Mist Turbofan Fire Monitor System is a professional firefighting device that utilizes high-capacity turbo fan technology to deliver extinguishing agents—such as water, foam, or water mist—at high velocity over long distances. Driven by powerful airflow, the extinguishing agent is projected as a high-momentum jet, enabling rapid and sustained directional firefighting from a safe distance.

This system is particularly suitable for high-risk fire scenarios, large open spaces, and locations where close-range manual firefighting is difficult or unsafe. It is widely used as an active, high-power firefighting solution in modern industrial facilities, warehouses, and special hazard areas, and has been successfully applied in large-scale projects both domestically and internationally.

2. Key Advantages

1. Long discharge range and wide coverage

Powered by a turbo fan generating strong airflow, the extinguishing agent can be discharged over long distances with wide area coverage, effectively addressing large spaces and high-risk fire sources.

2. High firefighting efficiency with rapid response

Capable of delivering strong fire suppression during the incipient or growth stages of a fire, significantly reducing fire spread.

3. Compatibility with multiple extinguishing agents

Water, foam, or water mist can be selected according to the protected hazard, meeting the requirements of different fire types and operating conditions.

4. Directional discharge with safe-distance operation

Supports remote or automatic control, allowing firefighting operations to be carried out without personnel approaching the fire source, thereby enhancing operational safety.

5. Robust construction for harsh environments

Designed with industrial-grade construction, suitable for long-term operation in high-temperature, dusty, oily, and complex industrial environments.

3. Operating Principle

1. Under normal conditions, the system remains in standby mode, with the turbo fan and agent supply system under monitoring.

2. Upon fire occurrence and receipt of an activation signal, the turbo fan starts immediately.

3. The powerful airflow propels the extinguishing agent through the nozzle at high speed toward the target fire area.

4. The extinguishing agent cools, blankets, or displaces oxygen at the fire source, rapidly suppressing combustion.

5. The system can operate continuously or intermittently as required until the fire is fully controlled.

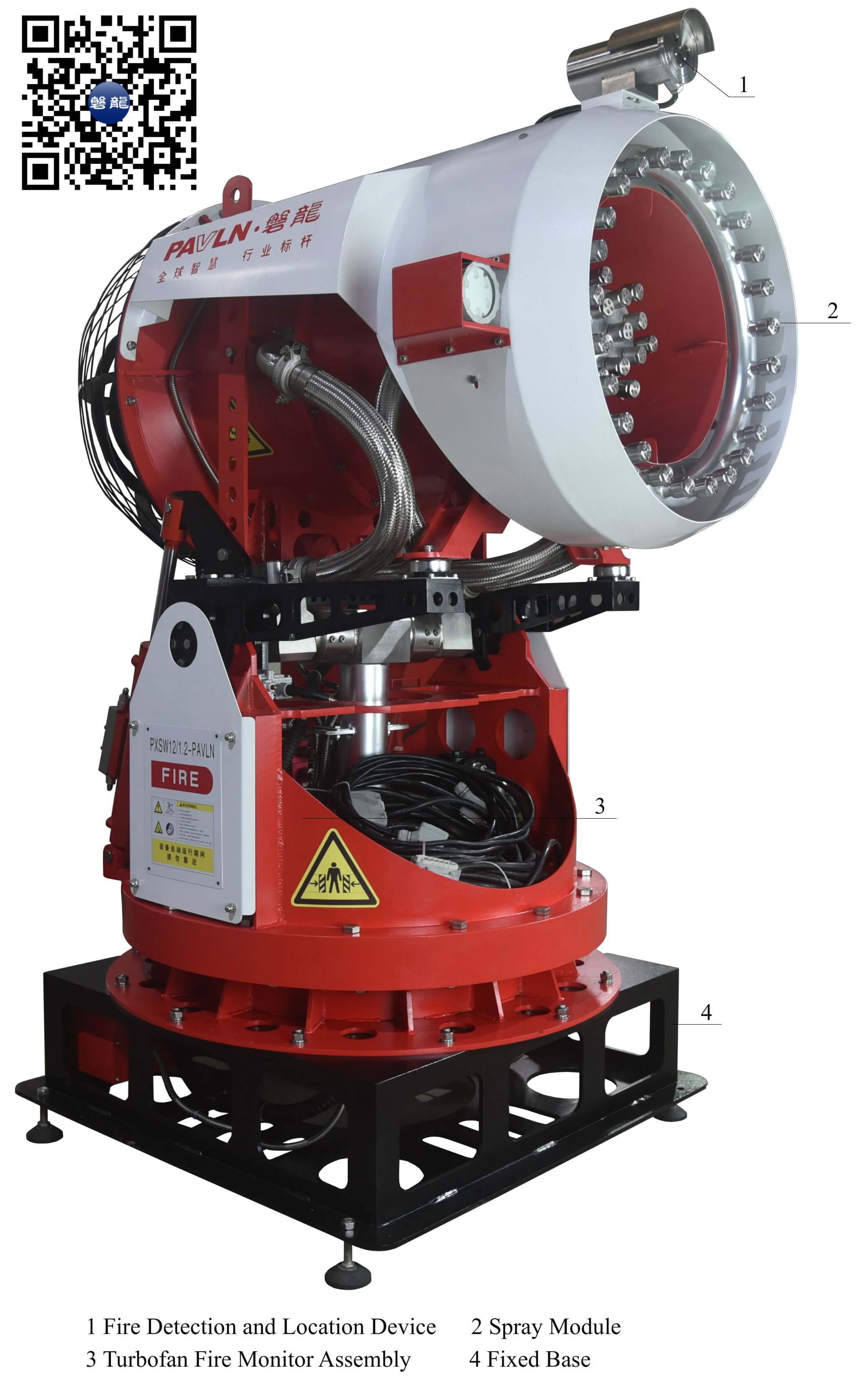

4. System Components

5. Main Technical Parameters

6. Typical Applications

• Petrochemical process units and tank farms

• Large warehouse and logistics centers

• Oil-immersed transformers and oil-immersed reactors

• Waste treatment plants and refuse storage areas

• Ports, terminals, and large outdoor operating areas

• Industrial plants and large-span production workshops

Contact Us

If you are looking for a Water Mist Turbofan Fire Monitor System with the following features:

• Long-range discharge for large spaces and high-risk fire hazards

• High firefighting efficiency with rapid fire suppression

• Multiple extinguishing agent options for versatile applications

• Remote or automatic control for enhanced operational safety

• Compliance with firefighting requirements for industrial and special hazard occupancies

Please contact our fire protection solutions team. We provide:

• Fire risk assessment and firefighting system design

• Product selection, technical consultation, and application support

• Project pricing, supply, and engineering coordination services

• Installation guidance, commissioning support, and operator training

We are committed to delivering efficient, reliable, and professional firefighting equipment and integrated solutions for complex operating environments worldwide.
